參數：
1、適用于小鼠電生理實驗.
2、改良型的口夾,鼻夾和耳棒.可縱向和垂直調節
3、口夾,鼻夾和耳棒系統拆卸靈活,可單獨清洗.也可與其它定位儀底座裝配使用
4、具有直徑最大為18.7毫米的操作臂夾套,兼容性極強
5、底座的尺寸: 長400 mm ×寬300 mm × 高110mm
6、凈重量:9.2公斤
7、調節范圍:水平粗調60mm，垂直粗調50mm, 垂直精調6--10mm, 精度10um
8、含SM-15 及EB-5N 附件，L型架可調節高度
配置: 雙支架底座1個;推進器1個;小鼠定位夾1個
SR-6M Stereotaxic Instruments (for Mice)
Specially designed for mice, fixing the head firmly.
Based on our long-established SR series, this stereotaxic instrument is designed specifically for mice and is equipped with various functions to fix the head more firmly. The auxiliary ear bar allows clamping actions to be smoothly manipulated with just one hand, letting the operator fix the external auditory canal and check the fixation firmness with the fingertips. The mouth and nose fixing clamp features a slim, compact design appropriate for the mouth of a small mouse, making it easy to confirm that the teeth are fixed firmly. In addition, the instrument allows easy back/forward and up/down position adjustment. An 18.7mm AP frame bar is provided, to which many different types of accessories can be attached besides the attached micromanipulator SM-15. The SR-5M has one AP frame bar, while the SR-6M has two.
Basic model (excluding SM-15) also available. When using these instruments with rats, use the separate RA-6N as well.

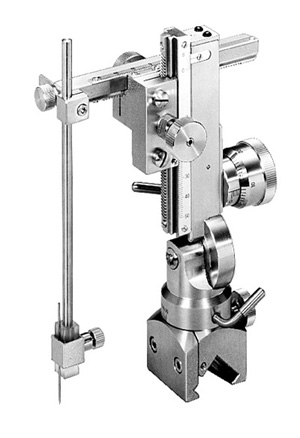

SM-15
Stereotaxic Micromanipulator
Compact, versatile and popular micromanipulator.
This is the most popular micromanipulator for stereotaxic instruments, and is attached to AP bar of the instrument when in use. Coarse movement units with a long working range is attached to both the X-axis and the Z-axis; the latter also has fine movement units attached. The fine movement handle is positioned for ease of use, and jitters from handle operations are not transmitted to the microelectrode tips. Vertical and horizontal rotation mechanisms are both equipped, enabling approaches from any required tilting angle. Easy-to-use scales are provided wherever necessary, for operations following a brain chart. This manipulator has a compact yet rigid design, and can be operated with excellent stability in confined spaces.
Specification
| Accessory included |
Allen Wrench |
| Movement range |
Coarse |
X60mm, Z50mm |
| Fine |
Z8mm |
| Full rotation of knob: 500μm |
| Minimum graduation: 10μm |
| Dimensions/Weight |
W120 × D75 × H180mm, 1.25kg |
AP frame bar size
Narishige produces world standard 18.7mm square shape AP frame bar. Please be advised when mounting on your existent frames since our stereotaxic manipulators are tailored for 18.7mm AP frame bar.
Specification
| Accessories included |
SM-15 Stereotaxic Micromanipulator |
| EB-5N Auxiliary Ear Bar for Mice |
| Dimensions (base) |
W400 × D300 × H110mm |
| Total weight |
9.2kg |

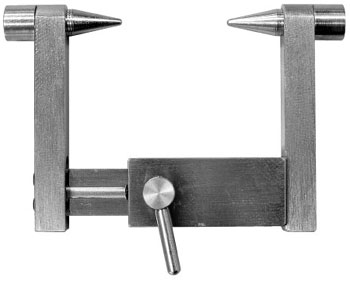

EB-5N
Auxiliary Ear Bar for Mice
Used with SR series stereotaxic instruments, this auxiliary ear bar is attached before fixing the mouse on to the fixing clamp, making fixation simple. Even if the animal is detached and the re-fixed, repeated fixation is quick and easy. Smooth, uncomplicated clamping with one hand is much easier than with conventional models.
Specification
| Dimensions/Weight |
W48 - 62 × D37 × H10mm, 35g |
