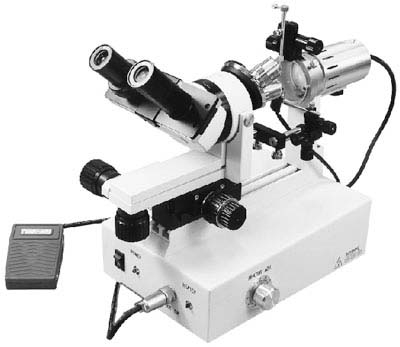

MF-900 日本成茂鍛燒儀
Multiple functions for making different kinds of microtools.
Reflecting Narishige's long practical experience, the MF-900 offers a wide range of functions for making many different kinds of microtools by processing microneedle tips. An easyto-use manipulator is provided for operating the heater and pipette, and the microscope is operated three-dimensionally with control close to the operator's hand. Separate rotation mechanisms for vertical and horizontal movement allow the pipette to be approached at any angle, while a special device in the heater section can form it into any required shape. As well as conventional scales, a protractor to measure angles is provided on the microscope eyepiece. With the heater turned ON/OFF via a foot switch, and the heater section integrated into the microscope body, all control actions are performed easily and precisely close to the operator's hand.
Specification:
| Accessories included |
MF-900F Foot Switch |
| AC Power Cord |
| Dedicated Pipette Holder |
| Allen Wrench |
| Spare Heater |
| Spare Lamp |
| Silicone Rubber Gasket |
| Movement range |
Heater manipulator |
X14mm, Y14mm, Z14mm |
| Pipette manipulator |
X12mm, Z28mm |
| Microscope |
X approx. 7mm, Y30mm, Z approx. 8mm |
| Magnifications |
50x/100x (Eyepiece 10x, Objective Lenses 5x, 10x) |
| Glass capillary |
1mm |
| Power Source |
AC100 (±5%), 50/60Hz |
| AC120 (±5%), 50/60Hz |
| AC220 (±5%), 50/60Hz |
| AC240 (±5%), 50/60Hz |
| Power consumption |
Approx. 35W |
| Dimensions/Weight |
W200 × D350 × H300mm, 6.1kg |
Optional accessories:
| Model |
Product |
Description |
| MF-OP |
Optional lens for MF-900 |
35x objective lens |
| 15x eyepiece with micrometer |
| 15x eyepiece without micrometer |
| MF-OPA |
Optional lens for MF-900 |
35x objective lens |
| MF-OPB |
Optional lens for MF-900 |
15x eyepiece without micrometer |
| MF-OPC |
Optional lens for MF-900 |
15x eyepiece with micrometer |
Consumables:
| Model |
Product |
Description |
| PT-B |
Platinum wire heater |
150μm × 300mm |
| MF-900L3 |
Lamp |
|
|
